1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

Sertifikasi
CINA SHANGHAI SUNNY ELEVATOR CO.,LTD Sertifikasi
CINA SHANGHAI SUNNY ELEVATOR CO.,LTD Sertifikasi
Dengan datangnya tahun baru, saya berharap perusahaan dapat memperluas skalanya, mengembangkan bisnisnya, mengembangkan bisnisnya, dan memperluas sumber daya keuangannya.

—— Melya

Menekankan Manajemen Kualitas Produk, Membangun Mekanisme Kualitas Jangka Panjang yang Efektif.

—— Yuilly

I 'm Online Chat Now

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

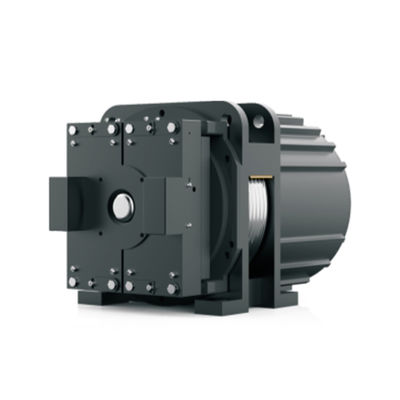

Gambar besar :  1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

Detail produk:
Tempat asal: CINA
Nama merek: SUNNY
Sertifikasi: CE
Nomor model: SN-GETM2.5DS
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: $500~1200
Kemasan rincian: Kotak kayu
Waktu pengiriman: 7~15 hari
Syarat-syarat pembayaran: serikat barat, t/t, l/c, paypal
Menyediakan kemampuan: 5000 buah/Bulan
Detil Deskripsi produk
Beban statis: 3000kg DI.Kelas: 155(P)
Rem Vol: DC110V Frekuensi: 50 Hz
Penalian: 2: 1 Nama Produk: Motor tanpa gigi lift
Model: Motor tanpa gigi lift Jenis: Motor tanpa gigi lift
Memuat: 630kg Kecepatan: 1,0~1,75 m/detik
Menyoroti:

gearless elevator motor

,

1.0~1.75m/s elevator motor

,

elevator spare parts motor

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

Product Parameters



Roping

Load

(kg)



Speed

(m/s)



Rated speed(r/min) Rated Torque(N.m) Motor Sheave Brake

Power

(kw)

Voltage(V) Current(A) Poles

Frequency

(Hz)

Diameter(mm) Rope(n) Groove pitch(mm) Current(A) Voltage(V)
2:1 630 1 119 329 4.1 340 10 20 19.8 320 ≤5x∅8 12 ≤2x1.5 DC 110V
1.5 179 337 6.3 15 29.8
1.75 209 337 7.4 17 34.8





1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 0

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 1

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 21.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 31.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 4
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
