Infrared Touch Induction button Elevator Regular LOP Access Elevator Parts

Infrared Touch Induction button Elevator Regular LOP Access Elevator Parts

Gambar besar :  Infrared Touch Induction button Elevator Regular LOP Access Elevator Parts

Detail produk:
Tempat asal: Cina
Nama merek: SUNNY
Sertifikasi: CE,ISO9001
Nomor model: Seri SN-LOP-MAGO10
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Harga: $10~30
Kemasan rincian: kotak kayu
Waktu pengiriman: 7 Hari Kerja
Syarat-syarat pembayaran: L/C,T/T,Western Union
Menyediakan kemampuan: 5000 buah/bulan
Detil Deskripsi produk
Nama: LOP Reguler Lift Bagian Lift: LOP Reguler Lift
Jenis Bisnis: Pabrikan Nama Produk: Bagian Lift
Angkutan: Transportasi Laut Model: LOP Reguler Lift
Produk: LOP Reguler Lift Warna: Hitam
Tombol: Induksi Sentuhan Inframerah Dimensi Kotak (mm): 161,4×48,4×18,2

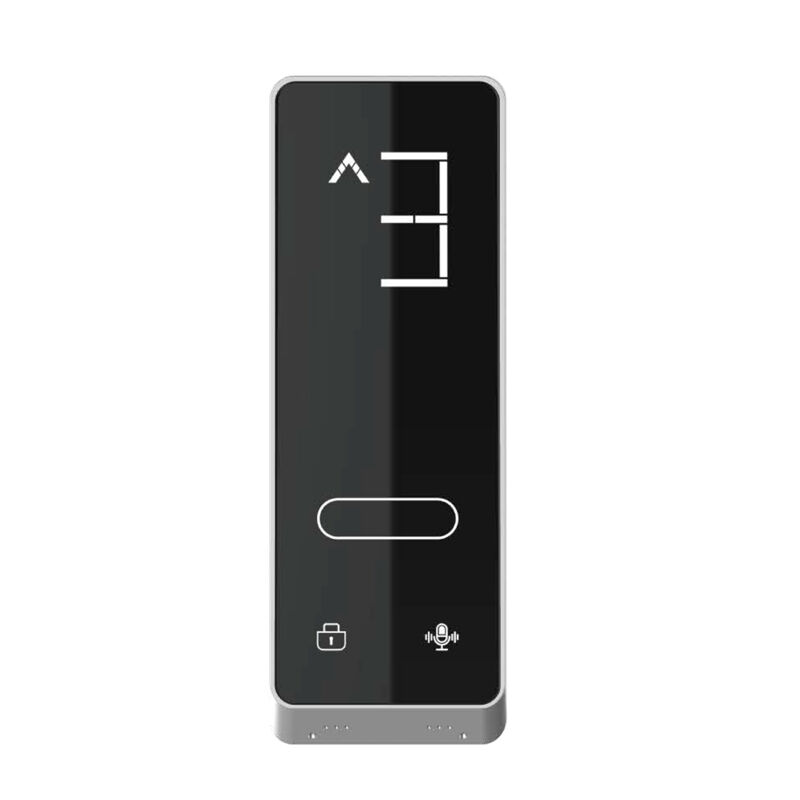

Infrared Touch Induction Button Elevator Regular LOP Access Elevator Parts
Product Specification

Product Name Magnolia Regular LOP (Inductive Button) Remote control
Compliance GB/T 21739-2008
Compatible System Monarch System: Glory Cabinet/MINI Cabinet/3rd Generation Cabinet (Non-encrypted Version)
Basic Information Product Model MAGO10-ZX-KBF-01 MAGO10-ZX-GKS-01 MAGO10-UC-01
Style Flush-mounted Type Wall-mounted Type /
External Dimensions (mm) 170×58×22.8 164×58×19 140×38×14
Box Dimensions (mm) 161.4×48.4×18.2 / /
Product Color Black Black White
Panel Material Tempered Glass Tempered Glass ABS Injection Molding
Frame Material ABS Painted (Silver Frame) ABS Painted (Silver Frame) Dark Gray Acrylic for Display Window
Display Module White Segment Code White Segment Code /
Communication Method RS485 RS485 Infrared
Button Infrared Touch Induction Infrared Touch Induction Mechanical
Functional Parameters Child Lock Function Standard Standard /
Destination Floor Voice Call Optional Optional /
Remote Call Optional Optional /
Installation Method Flush-mounted

Infrared Touch Induction button Elevator Regular LOP Access Elevator Parts 0

Infrared Touch Induction button Elevator Regular LOP Access Elevator Parts 1

Infrared Touch Induction button Elevator Regular LOP Access Elevator Parts 2

Infrared Touch Induction button Elevator Regular LOP Access Elevator Parts 3

Infrared Touch Induction button Elevator Regular LOP Access Elevator Parts 4

Infrared Touch Induction button Elevator Regular LOP Access Elevator Parts 5

Infrared Touch Induction button Elevator Regular LOP Access Elevator Parts 6

FAQ

1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
